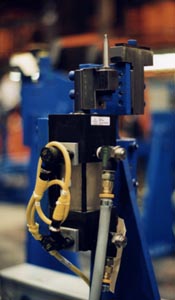

Automotive Locating Pin Cylinders

LSA-85 Non-Rotation Locating Pin Cylinder

RIGID, NON-ROTATING Less than 0.0050" (0.127mm) of deflection will be seen at the pin including the offset.  Performance in the field has been confirmed since 1996 and backed by brutal 3,000,000 cycle tests of each model. These tests are run with unrestricted air lines.  No orifices or other restrictions should be used in the application of Zaytran LSAs.

NO MAINTENANCE All LSA models are lubricated for life. In addition, the weld immune iron nitride shaft treatment combined with the ultimate rod scraper assures operation in the toughest automotive environments.

COMPACT, EASY TO APPLY With the smallest size in the industry LSAs are easy to fit into any application. All mounting surfaces comply with Auto/Steel component or European standards.

LIFE OF TOOL GUARANTEE With application sign-off all ZAYTRAN LSA Non-Rotating locating cylinders are guaranteed for the life of the tool.

RapStop™ TECHNOLOGY obsoletes antiquated external stops and rap couplings.



Model LSA-EU5 LSA-73-S LSA-73-L LSA-85 LSA-80 LSA-105 LSA-100
Use Straight Pin Straight Pin L-Shaft L-Shaft,
Multiple Locating Device Capable
L-Shaft,
Multiple Locating Device Capable
L-Shaft,
Multiple Locating Device Capable
L-Shaft,
Multiple Locating Device Capable
Typical Applications Tooling and
End Effectors
Tooling and
End Effectors
Tooling and
End Effectors
Tooling and
End Effectors
Tooling and
Slide Replacement
Tooling and
Slide Replacement
Tooling and
Slide Replacement
Strokes 40, 60 mm   25, 50 mm   25, 50 mm   25, 50 mm  25, 50, 75, 100 mm

25, 50 mm 25, 50, 75, 100, 125, 150, 175, 200 mm
Weight 1.9 KG
(4.25 Pounds)
2 KG
(4.49 Pounds)
2 KG
(4.49 Pounds)
4 KG
(8.8 Pounds)
6.5-8.0 KG
(14-18 Pounds)
10 KG
(22 Pounds)
13-26 KG
(28-57 Pounds)
Pull Force @
4.1 BAR (60 PSI)
622N
(140 Pounds)
860N
(193 Pounds)
860N
(193 Pounds)
1100N
(250 Pounds)
1100N
(250 Pounds)
2794N
(628 Pounds)
1380N
(310 Pounds)
Standard European NAAMS NAAMS NAAMS NAAMS NAAMS NAAMS






CAD Files Click Here
